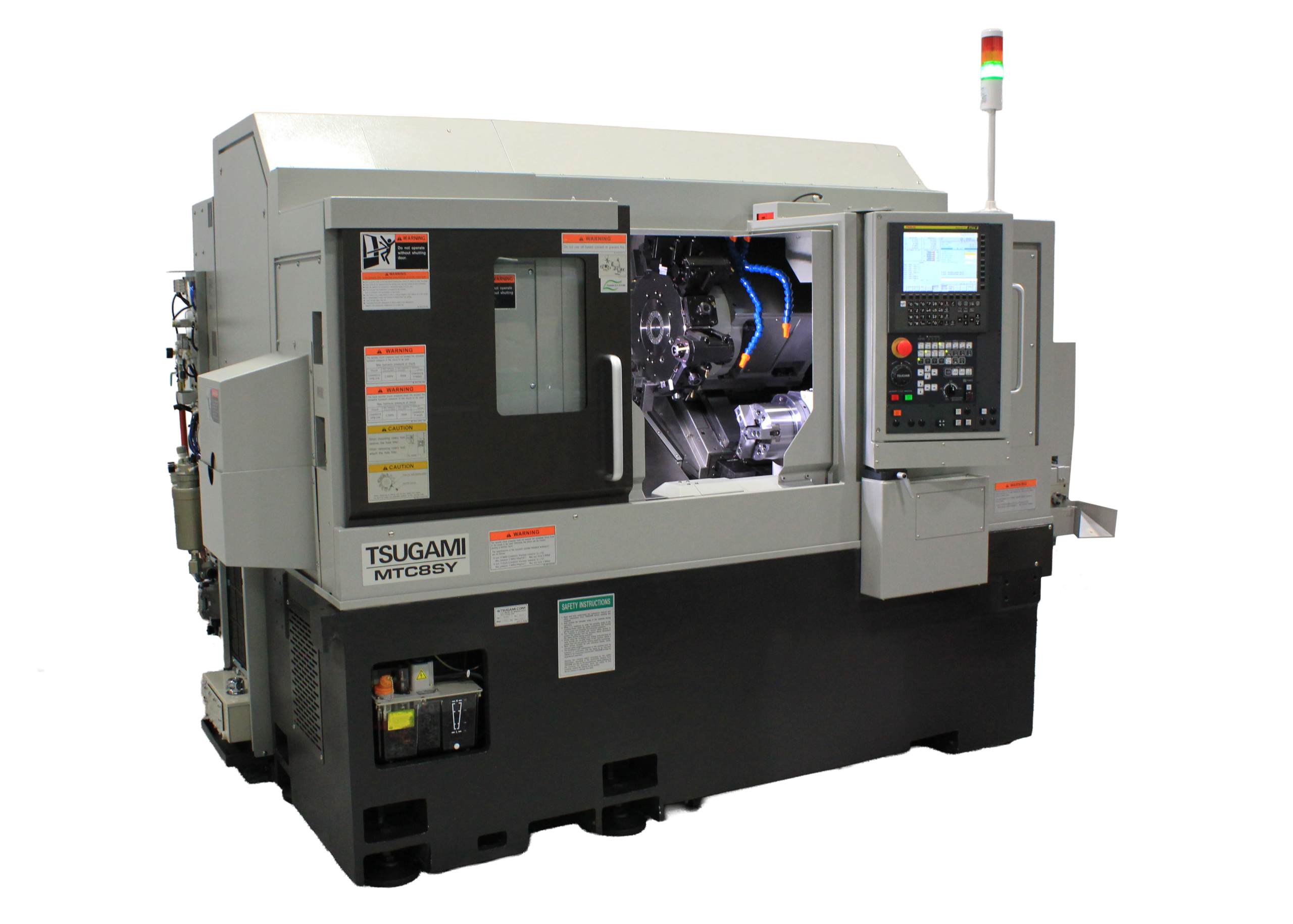

Tsugami MTC8SY Horizontal Lathes
Machine overview and technical information
Y-Axis Turning Center
The Tsugami MTC8SY is a Y-axis turning center designed for complex machining that combines turning, drilling, boring, cross-drilling, and milling in a single platform. A 12-station driven-tool turret, main and back spindles, and Y-axis capability allow manufacturers to complete complex parts while reducing secondary operations.
- Maximum machining diameter: 11.02 inches
- Maximum bar capacity: 2.56 inches
- Maximum machining length: 14.96 inches
- 8-inch main spindle chuck
- 6-inch back spindle chuck
- Main spindle speed up to 4,500 rpm
- Back spindle speed up to 4,500 rpm
- Live tooling speed up to 5,000 rpm
- 12-station driven-tool turret
- Y-axis travel: ±1.97 inches
- X-axis travel: 8.70 inches
- Z-axis travel: 15.75 inches
- Back spindle A-axis travel: 19.92 inches
- Main and back spindle C-axis control with brake
- Manual swivel-type tool setter
- FANUC 0i-TF Plus CNC control
The MTC8SY uses integral servo motors on both spindles to minimize vibration and support stable dimensional accuracy and surface finish. Box-way construction on the X and Y axes provides rigidity and damping for heavy cutting, while the back spindle and live tooling support complete machining of complex components with fewer setups.
