Machine overview and technical information
Vertical Machining Center

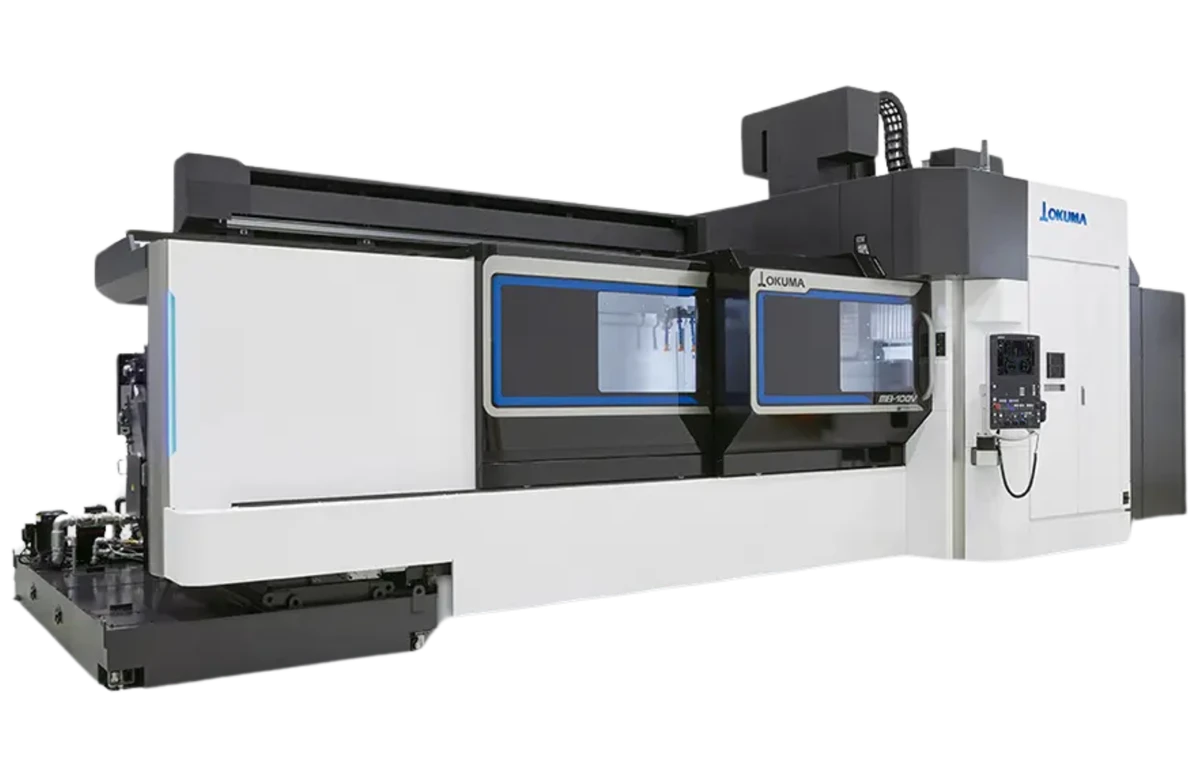

The Okuma MB-100V is a large-capacity vertical machining center built around a highly rigid double-column structure for machining large and heavy workpieces. Its expansive travels, high-capacity table, and powerful standard No. 50 spindle support demanding applications including large components and dies and molds.
- X-axis travel: 125.98 inches
- Y-axis travel: 49.21 inches
- Z-axis travel: 29.53 inches
- Table size: 118.11 × 39.37 inches
- Maximum standard table load: 13,200 lb
- 12,000 rpm No. 50 standard spindle
- Spindle output: 33/26 kW (10 min/continuous)
- Maximum spindle torque: 302/148 N-m (10% ED/continuous)
- 32-tool automatic tool changer standard
- Automatic front door standard
- Rear operation door and sub-operation panel standard
- OSP-P500M CNC control
The MB-100V is designed to reduce the workload associated with large-part machining through wide machine access, effective chip evacuation, and process consolidation capabilities. Okuma’s Thermo-Friendly Concept helps maintain dimensional stability during extended operation while optional automation and expanded tool capacity can support longer periods of unattended production.
